Excavator Sliding Arm For PC200 Deep Foundation Tunnel Construction

Brand Name : Zhonghe

Model Number : SSB001

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : $5000-$6400/pieces

Payment Terms : T/T

Supply Ability : 60 Piece/Pieces per Month

Delivery Time : 20-30 work day

Packaging Details : wood case

Suitable Excavator(ton) : 20-50T

Product name : excavator sliding arm

Marketing Type : New Product 2022

After-sales service provided : Online support

Color : Yellow/Gray/Red/Green/Customizable

Material : Q355B

Application : Excavator Attachment

Condition : 100%New

Applicable industries : Construction works,Machinery Repair Shops,Energy & Mining,Building Material Shops

Weight : 2700-9000KGS

Packing : Bubble bag packaging

Capacity : 0.6-2.5 cbm

MOQ : 1 PCS

Contact Now

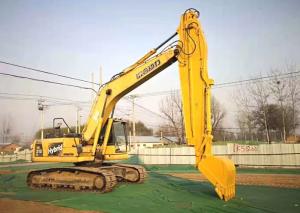

Excavator Sliding Arm for PC200 - Deep Foundation & Tunnel Construction

Excavator Slidng Arm

Description:
Long reach excavator is large work range,Original excavator standard boom usually shorter and small work range. Advantages of Long reach boom is large work range,advantages of standard boom is bigger bucket. Excavator Slide Arm is assembled on original boom to replace original arm, mainly for projects that need very deep cutting & Excavating requirements.Such as Subway building,dam construction,etc Slide Arm is Retractable,when retract back,can be as a original standard arm.When extend out,much longer than standard arm,can fulfill lots of very deep excavating requirements. For 20ton excavator,max cutting & excavating depth can be up to 9 meter.Covenient for lots of special projects.

Specifications

boom and arm for excavator:
1. Suitable for all model of excavator
2. Different material for your option
3. CE-approved boom and arm for excavator:

Excavator Sliding Arm For PC200 Deep Foundation Tunnel Construction

Excavator Sliding Arm For PC200 Deep Foundation Tunnel Construction

Features:

1. Applicable for all the make and model of excavator.

2. Standard supply include:bucket,linkage,bucket cylinder, 4oil pipe/hose,6pins,lubricating system

3. Many different material such as Q345B,Q690D,Weldox are optional to suit to your application.

4. Big boom can be two jointed pcs to make it fittable into container to save shipping cost.

5. All the seam are 45 degree tapered before welding.

Specification of this Komatsu HB215 Slide Telescopic Arm :

Min Length 5320 mm
Max Length 8170 mm
Travel length 2850 mm
Bucket Volume 0.4 Cum
Max reach 12810 mm
Max cut depth 9590 mm
Weight 2080 kg
Material Q345B+Q690D
Extra counter weight no need



Specification of Our series Slide Telescopic Arm:

Model HK-SLB120 HK-SLB200 HK-SLB300
Min Length (mm) 3840 5320 6060
Max Length (mm) 5890 8170 9060
Travel Length (mm) 2050 2850 3000
Bucket Volume (cum) 0.25 0.4 0.7
Max reach (mm) 9800 12810 15314
Max cut depth (mm) 7550 9590 13270
Weight (kg) 1420 2080 2980
Hose Fittings BSP 3/4" BSP 1" BSP 1-1/4"
Extra Counter weight (ton) No need No need No need



Our service:
1. We specialized in customizing all kinds of special boom for all kinds of excavators.
2. Main Material is Q345B + Q690D,the top and bottom cover plate is Q690D,and other sheet is Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the edge of the sheet.So the welding can go to the internal of the steel-sheet and make the structure have higher performance.
4. Welding is protective gas welding,the protective gas is 80% Argon and 20% CO2 mixed.
5.For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
6.If you need extra hydraulic pipe for breaker or other attachments,we also can prerpare for you.And the attachments pipe have stop valve in both end,it's easy for replace attachments.


Application:
Customer use this kind of Slide arm mainly for excavting deep pit in their projects.
